HITLIN (High-Temperature Layered Insulation) refers to the overall product used for fire prevention, which is non-combustible has sound absorption and insulation.
Basically, it is a high heat-resistant thermal insulation material for various types of piping in high-temperature piping systems and general building

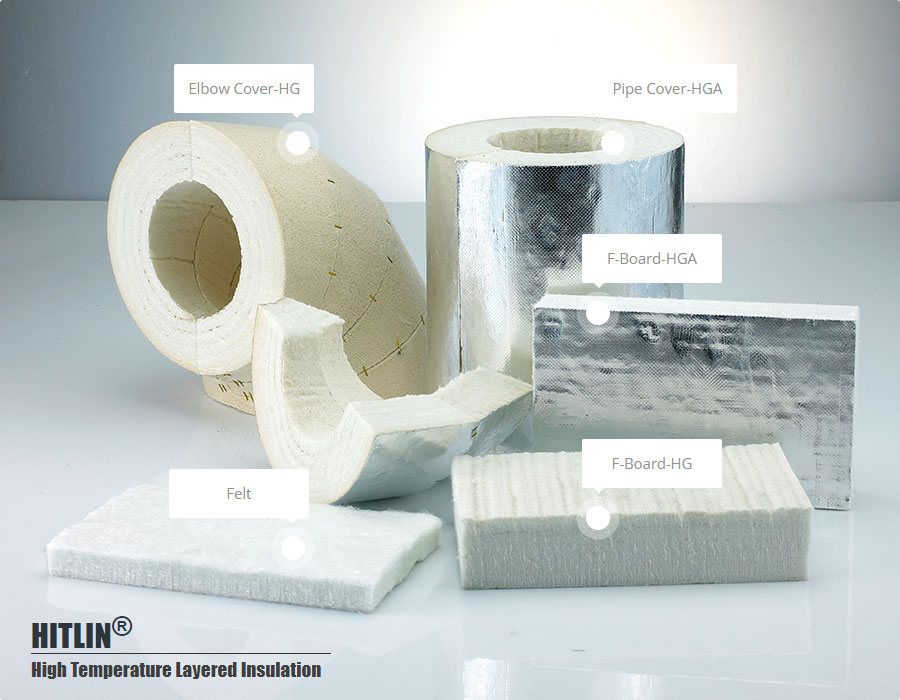

Type of HITLIN
ITEM
TYPE
DENSITY(㎏/㎥)
USED TEMP. (℃)
STANDARD
SIZE (inch)
LENGTH (m)
THICKNESS (mm)
PIPE COVER
HG HGA
200±10%
700 ± 45℃
1/2" ~ 44"
1m
20mm ~ design value
ELBOW
200±10%
4" ~ 44"
90º
45º
BOARD
200±10%
Round 46" ~
1㎡
180±10%
FELT
160±10%
Blanket
10m/Roll
25mm
140±10%
HGA: Hitlin Glass Fiber Adhesive Aluminum Foil N-CUI: Non-Corrosion Under Insulation R-CUI: Repellency Corrosion Under Insulation NPS System: ASTM C585 Density : Can be modified according to the customer’s requirements

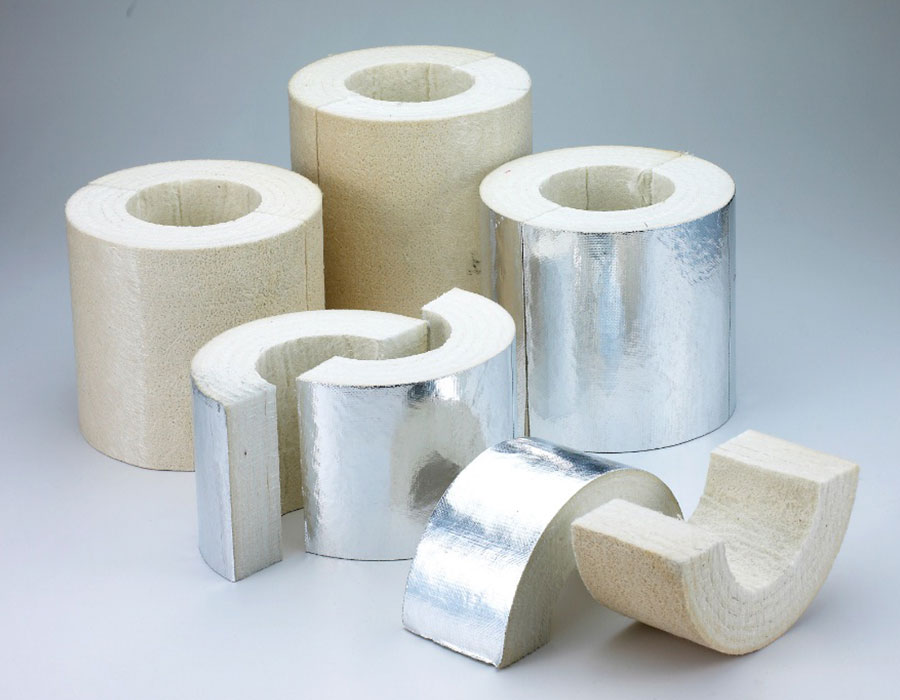

PIPE COVER

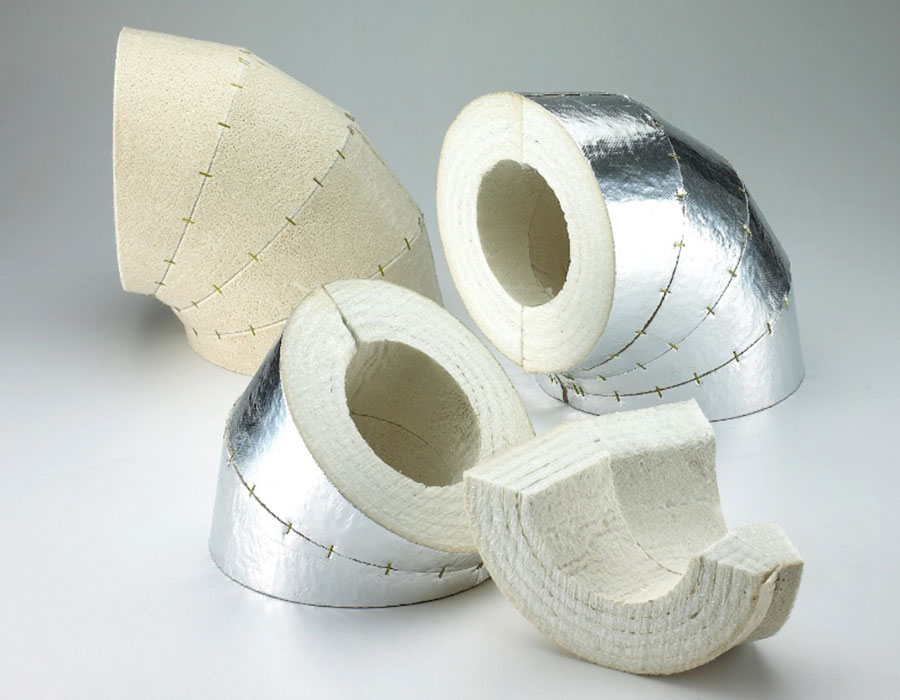

ELBOW COVER

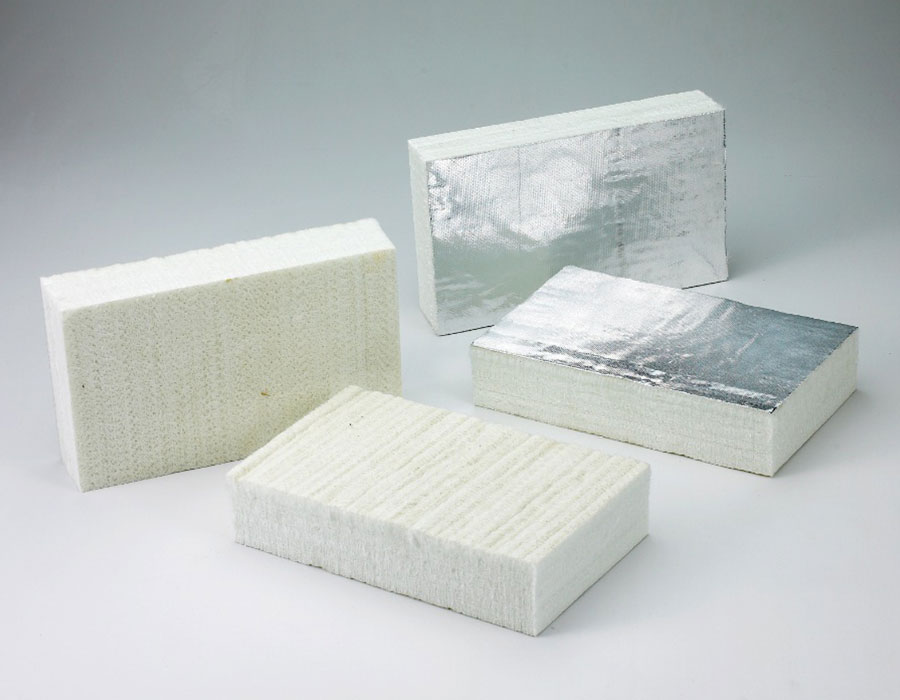

BOARD

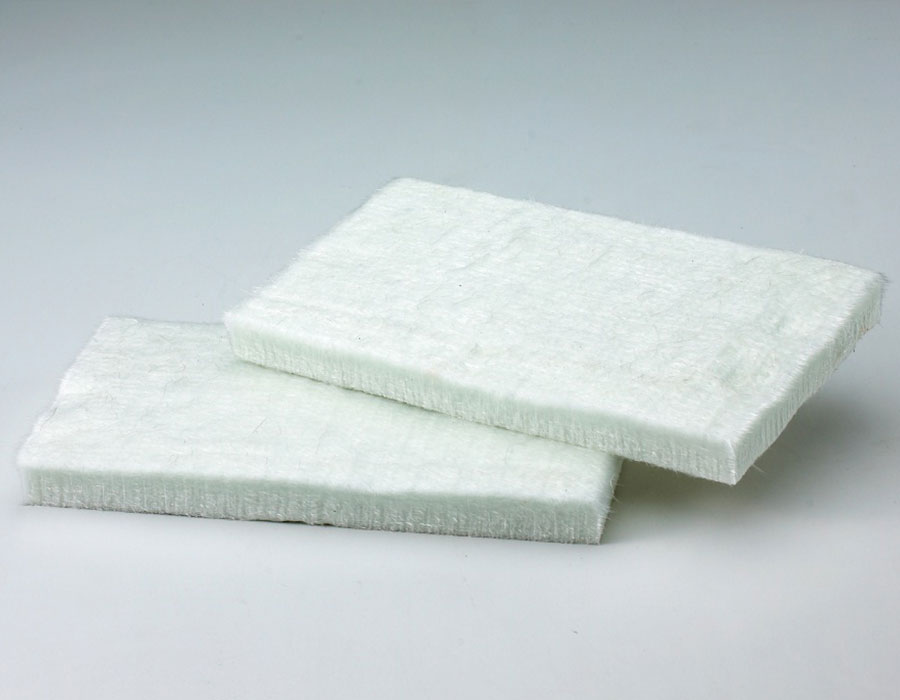

FELT
Advantages of HITLIN
Using E-glass Fiber Needle Mat, which is harmless to human body, as raw material
Realization of other impact prevention performance such as non-flammable and seismic resistance due to the characteristics of long glass fiber raw materials
Securing sound absorption and sound insulation performance by air layer
Minimize rainwater inflow by improving water repellency
CO2 reduction due to high efficiency during thermal insulation construction
Density adjustment and production of products of various standards are possible according to the production method
Easy to secure space and reduce insulation thickness by low thermal conductivity
Shortening the construction period by allowing simultaneous progress with other work
HGA: Hitlin Glass Fiber Adhesive Aluminum Foil
