UVTLIN
Product Type
About UVTLIN

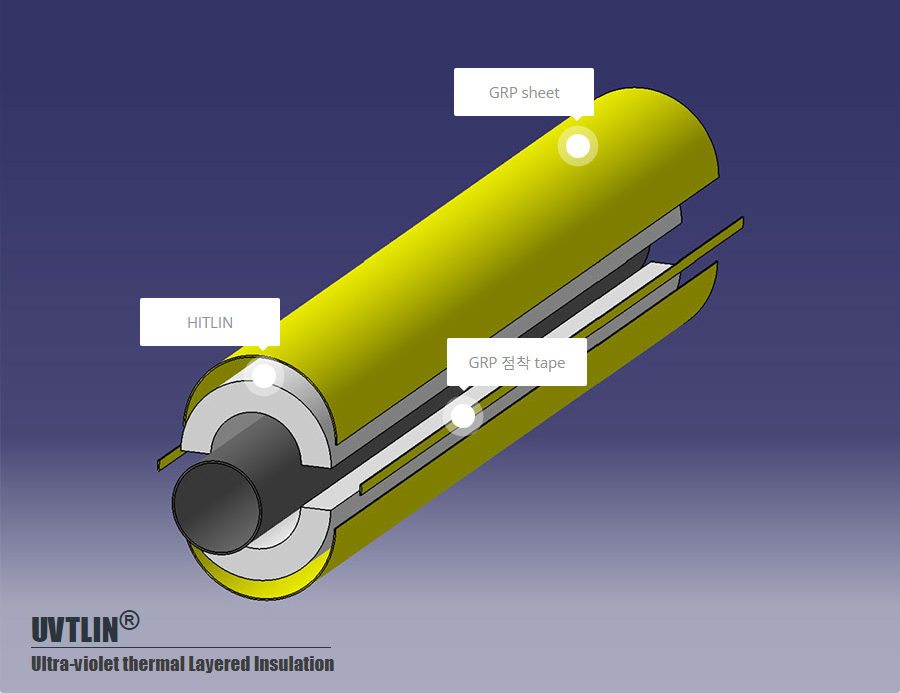

UVTLIN® is a thermal insulation material obtained by grafting UV-GRP Sheet, an ultra-violet thermal layered insulation to HITLIN, an existing E-glass fiber product. Hitlin which is the brand name of a product developed by Sewoon T&S for the purpose of using thermal and cold insulation materials. It is a product that improves workability by not only resolving corrosion under insulation (CUI) but also by remarkably shortening the construction time by manufacturing UV-GRP sheets instead of aluminum sheet on HITLIN, which has excellent thermal insulation.
Types of UVTLIN
Thermal Conductivity
(W/m.k @70℃)
Density
(kg/㎥)
Water Repellency(%) Max. Temperature(℃) Non-Combustibility
Less than 0.032 180 ~ 200 Above 98% Above 750 Above 750
Category CINI Standard TEST Standard UV-TLIN TEST Standard
Tensile Strength Min. 45 MPa ASTM D 3039 60 Mpa ASTM D 638
Hardness Min. 40 Barcol on
M-935 scale
ASTM D 2583 55 Barcol ASTM D 2853
Flame Propagation <5mm ASTM D 635 <5mm ASTM D 635

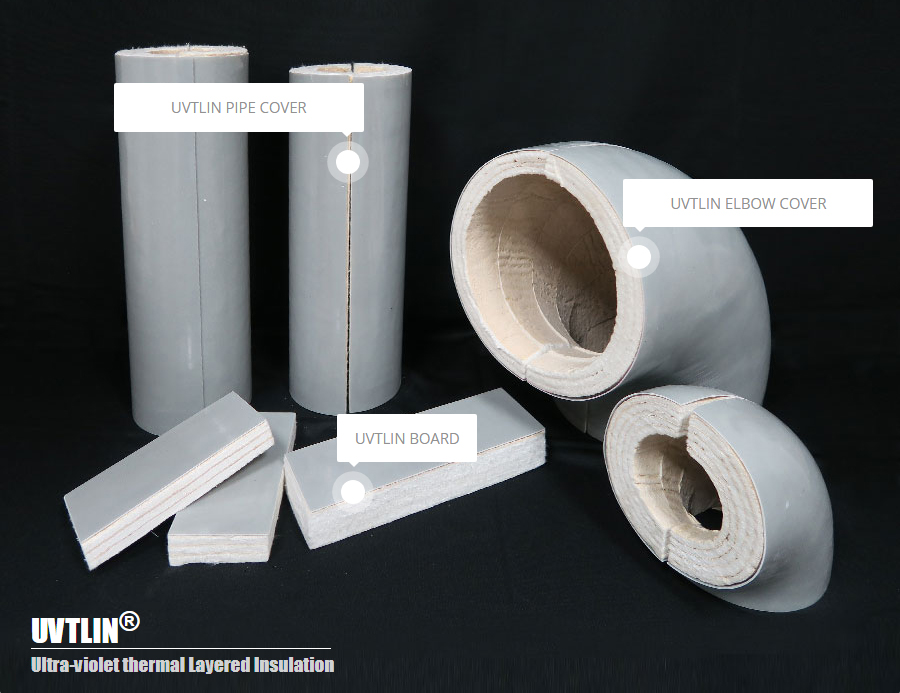

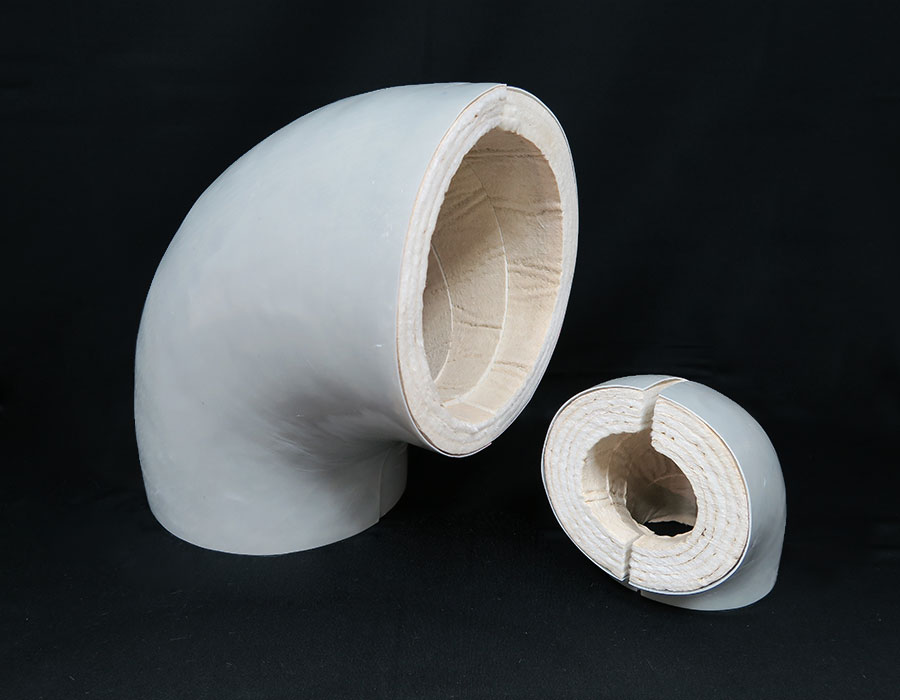

UVTLIN PRODUCTS ITTEM: PIPE COVER / ELBOW / BOARD / FELT / TEE / REDUCER / UV-GRP SHEET

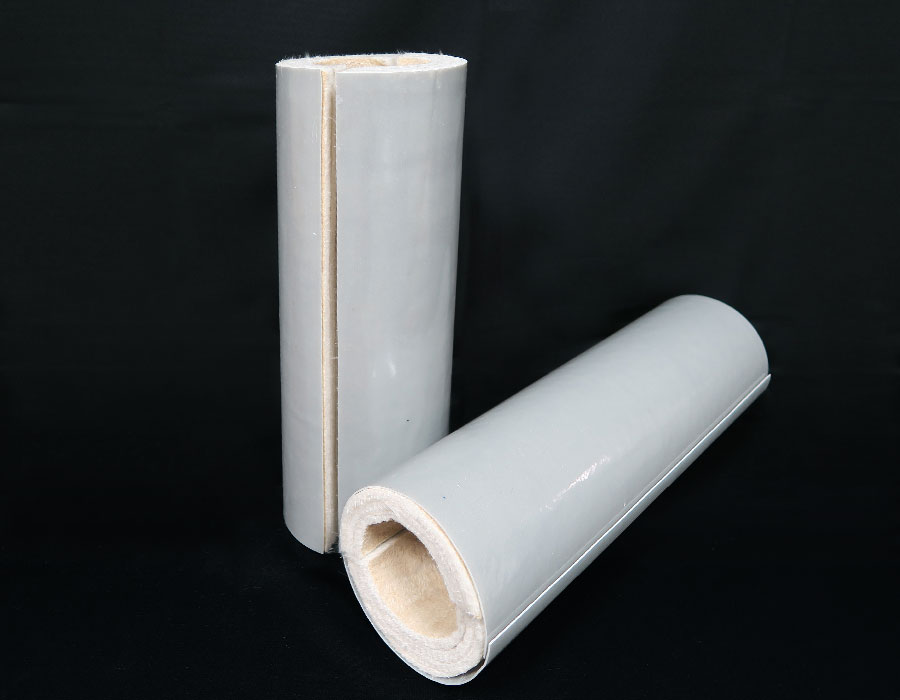

UVTLIN PIPE COVER
UVTLIN PIPE COVER

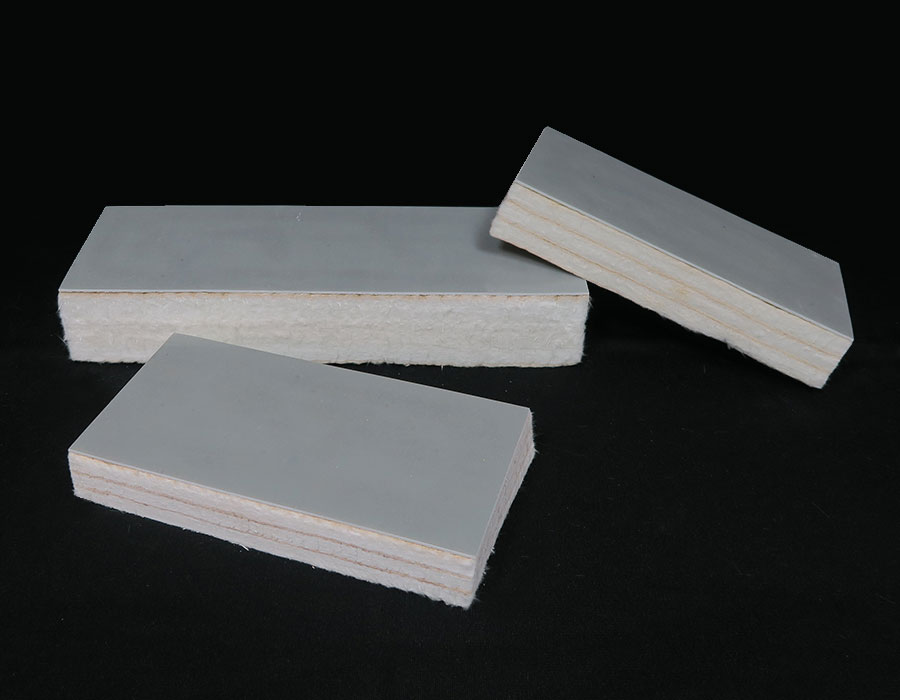

UVTLIN BOARD

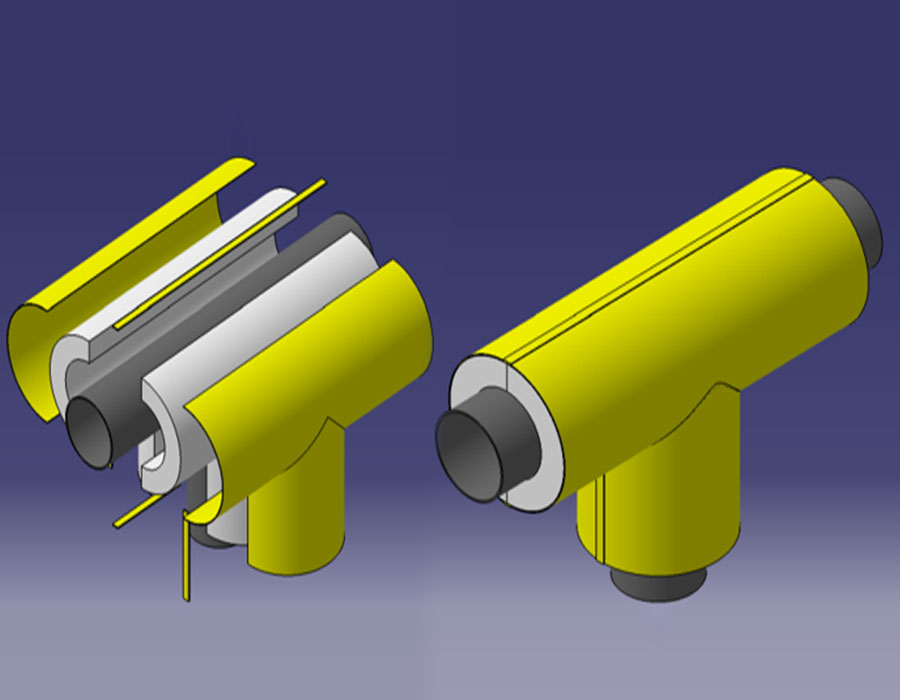

UVTLIN TEE

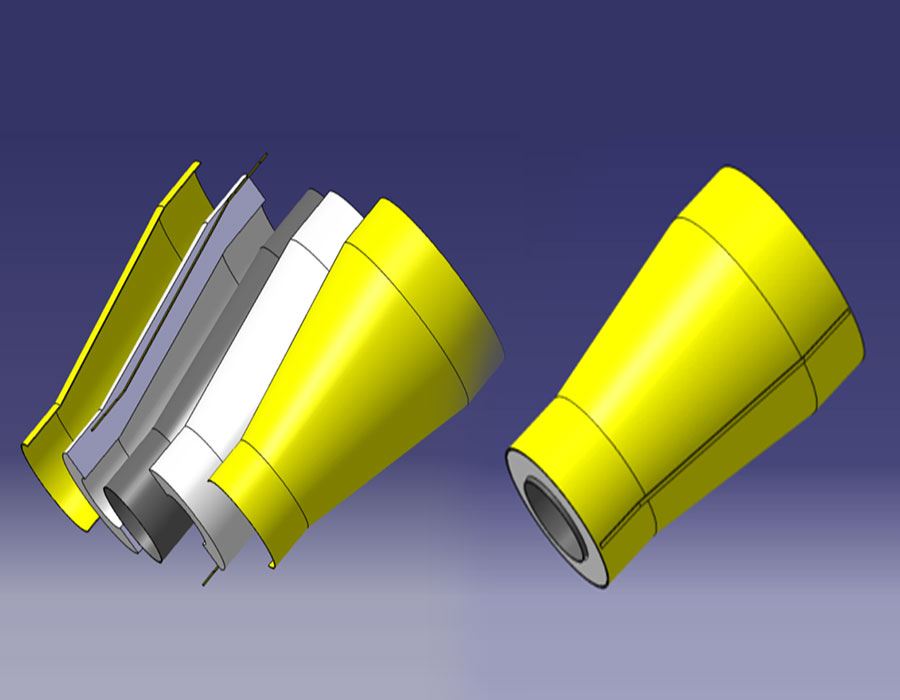

UVTLIN REDUCER

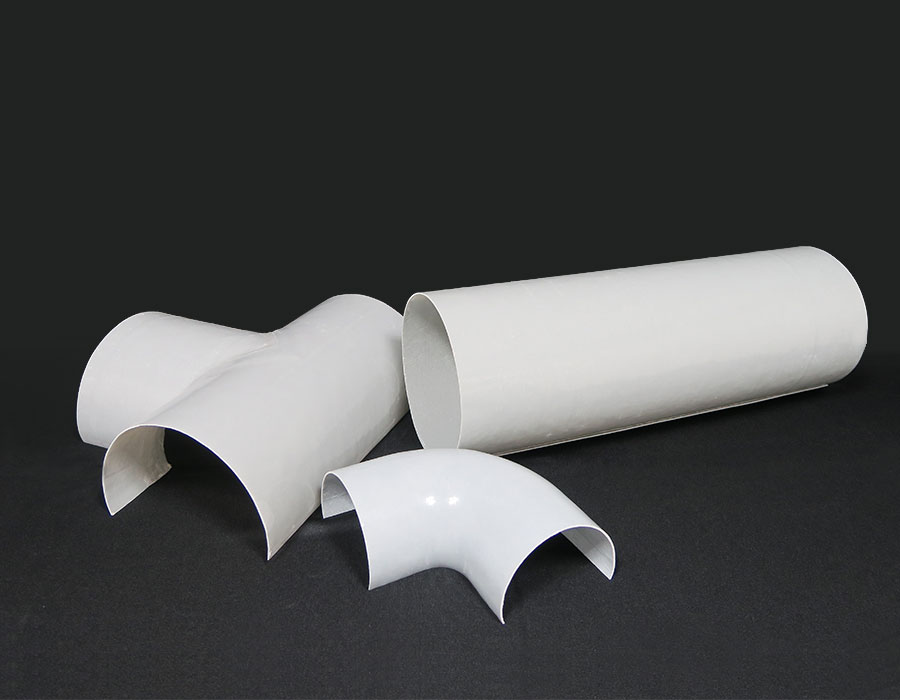

UV-GRP SHEET
Advantages of UVTLIN

Physical/Chemical/Heat Efficiency Improvement: Overcoming Vulnerabilities by Coating Composite Materials

Prevention of piping rust (CUI): Prevents moisture from entering the interior by completely sealing

Reduction in process and construction time: Reduction in process and construction period in general for exterior work in construction

Greatly Reduces the CO2 generation due to reduced energy consumption
