PIR
Product Type
PIR - Polyisocyanurate Resin
Three isocyanates react by themselves to form isocyanurate, which are then molded and foamed.
Types of PIR
| Products |
Thermal Conductivity
(W/m.k) |
Density
(kg/㎡) |
Water Absorption(%) |
Max. Temperature(℃) |
Fire Poperties/ Horizontal Burning |
| PiR |
0.020 @ 10℃ |
50 |
Less than 5.0 |
-170 ~ 140 ± 10% |
Less than 125mm |

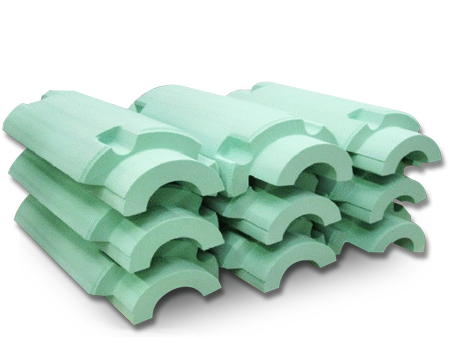

PIR PRODUCTS ITEM: PIPE COVER / ELBOW / BOARD
Advantages of PIR
Styrofoam form allows easy processing with a knife saw
No breakage unless physical force is applied
Easy to work with due to its light weight
Usable from room temperature to 100℃ to -190℃ (wide use temperature)
